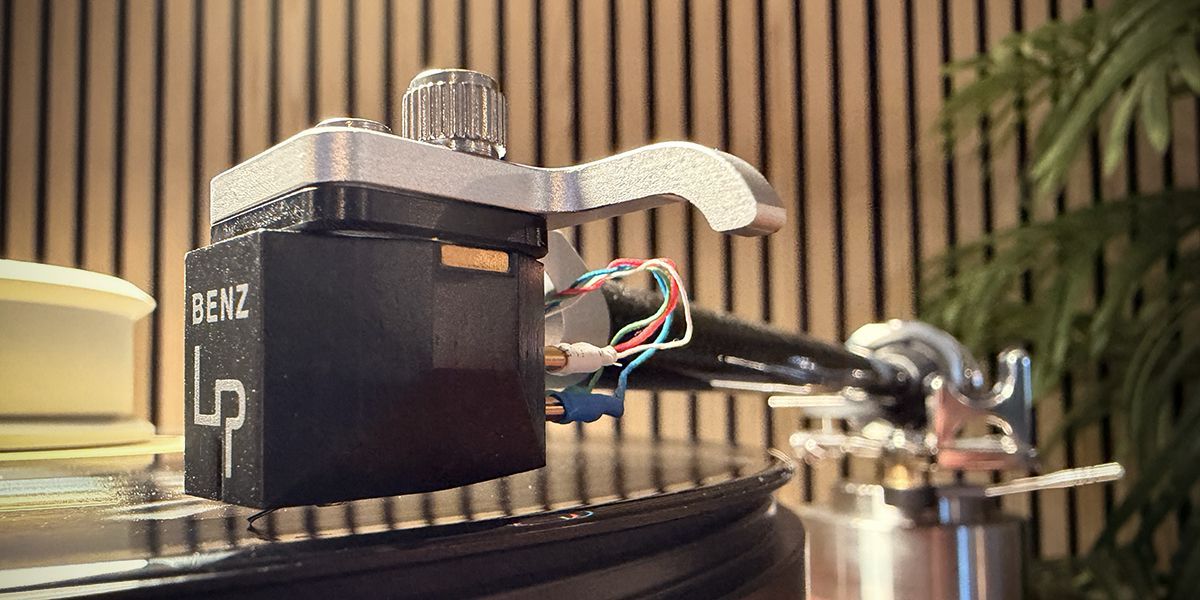

Understanding and Setting SRA and VTA


Among the many variables in turntable setup, few are discussed as often, or misunderstood as much, as Vertical Tracking Angle (VTA) and Stylus Rake Angle (SRA). While often used interchangeably, they describe different geometric planes. Understanding the distinction helps avoid the "endless adjustment" trap and ensures your cartridge performs exactly as the manufacturer intended.



- - - - -



1. What are VTA and SRA, and why do they differ?


Vertical Tracking Angle (VTA) is the angle between the record surface and an imaginary line connecting the stylus contact point to the cantilever’s pivot point. It is essentially the geometry of the cartridge’s suspension system.

Stylus Rake Angle (SRA) refers specifically to the angle of the stylus contact footprint (the vertical centerline of the diamond) relative to the record surface.


  • VTA is about the mechanics of the "arm" (the cantilever).
  • SRA is about how the "blade" (the stylus) sits in the groove.


Because the stylus is bonded to the cantilever, changing tonearm height alters both. However, SRA is the primary goal because it determines how accurately the playback stylus mimics the cutting stylus.


- - - - -



2. The 92-Degree Target: Why "Leaning Forward"?


The target of 92 degrees is the "gold standard" because of how records are made.


When a master lacquer is cut, the cutting stylus is angled slightly forward (typically 1° to 5°) to allow the "chip"—the thread of lacquer being cut away—to be cleared from the groove by a vacuum. If the cutter were at exactly 90°, the material would bundle up and ruin the cut.


To accurately trace these modulations, the playback stylus should ideally tilt forward at that same angle. While 92° is the cited average, the "sweet spot" typically falls between 91° and 95° depending on the specific cutting lathe used for that record.



- - - - -



3. VTA as a "Proxy" Adjustment


Most tonearms allow you to raise or lower the pivot, which is commonly called "adjusting VTA." In reality, you are using the tonearm height as a lever to change the SRA.


The Math of Adjustment: On a standard 9-inch (228mm) tonearm, you must move the pivot height by approximately 4mm to 5mm to change the angle by just one degree.


Pro Tip: If you are moving your tonearm by fractions of a millimeter, you aren't making a meaningful geometric change to SRA; you are likely just fine-tuning the mechanical resonance of the arm.



- - - - -



4. The "Hidden" Variables: VTF and Temperature


Two factors often overlooked can change your SRA more than tonearm height:


Vertical Tracking Force (VTF): Increasing tracking force causes the cantilever to "sink" further into its suspension, which lowers the SRA. You should always finalize your tracking force before attempting to fine-tune SRA.


Temperature: Cartridge suspensions are made of rubber or elastomers that soften in the heat and stiffen in the cold. A cartridge played in a 25°C room will sit slightly lower (and thus have a different SRA) than one played at 18°C. For peak accuracy, set your SRA at your "normal" listening room temperature.



- - - - -



5. Listening for the "Sweet Spot"


While "level" is the recommended starting point, your ears are the final judge. Here is how the tonal balance typically shifts:


Tail Up (Increased Angle): This shifts the balance toward the treble, often resulting in "faster" transients and more perceived "air." If taken too far, the sound can become thin or clinical.


Level (Neutral): This is the manufacturer’s design baseline. In most high-quality cartridges, this provides the most natural and balanced presentation across the frequency spectrum.


Tail Down (Decreased Angle): This shifts the balance toward the bass and lower-mids, creating a "warmer" or "darker" sound. If the tail is too low, you may lose high-frequency clarity and soundstage focus.



- - - - -



6. Stylus Profile Sensitivity


The more sophisticated the stylus shape, the more critical these angles become:


Spherical/Elliptical: Highly tolerant. The rounded contact patch means the "footprint" doesn't change much with height.


Line Contact / Shibata / MicroRidge: Extremely sensitive. These "fins" must align precisely with the groove modulations. If the SRA is off, you’ll hear increased "inner groove distortion" and a loss of high-frequency detail.



- - - - -



7. Record Thickness: Finding the Middle Ground


Audiophiles often worry about the height difference between a standard 120g LP and a thick 180g "audiophile" pressing.


In reality, the thickness difference (about 1mm) only changes the angle by roughly 0.2 degrees. Unless you have a world-class system and a "Golden Ear," this is generally below the threshold of audibility. We recommend setting your height using a 150g or 160g record to provide a "perfect" average for your entire collection.



- - - - -



8. When to Stop: Avoiding the Audiophile Trap


It is tempting to believe that perfect sound is always "one more turn" away. However, record-cutting angles vary from label to label and year to year.


The Golden Rule: Set the arm level, confirm your tracking force is correct, and listen. If the imaging is stable and the tonal balance feels natural, stop. Don't let the pursuit of a 92-degree measurement get in the way of enjoying the music.
