SIZE MATTERS...

Why longer tonearms are better.

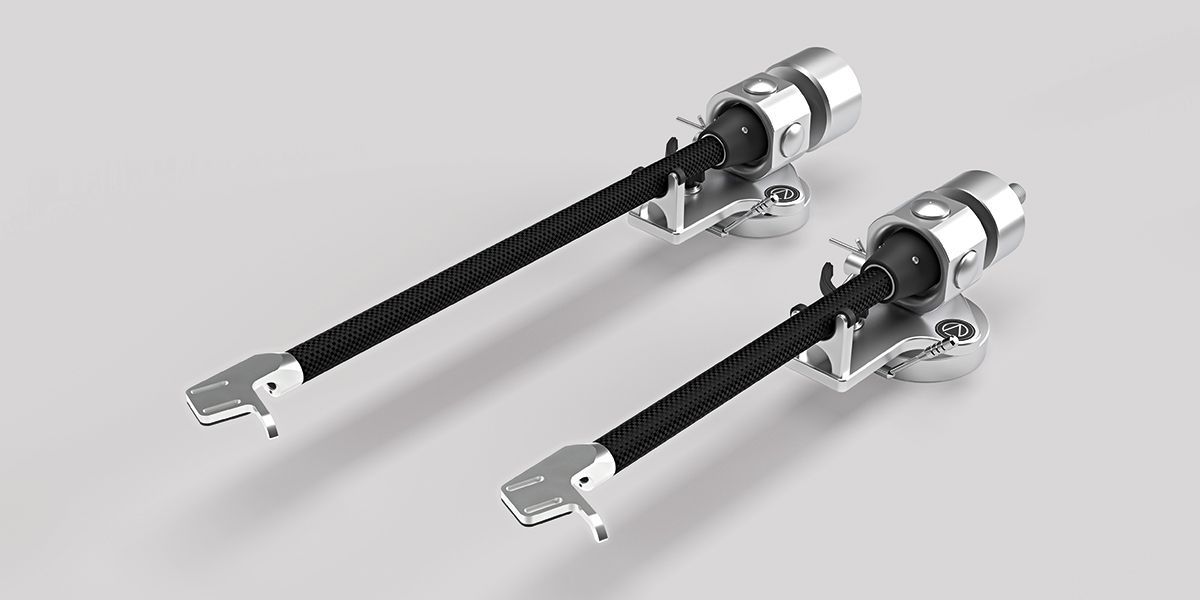

In the world of analogue playback, the debate between 9 inch and 12 inch tonearms has raged for decades. While both lengths have their place, physics tells us that the longer arm often delivers superior performance when properly designed and implemented.


Let’s break down why the extra three inches matter and how they translate into audible improvements.



Geometry and Tracking Error

At the core of tonearm design is geometry: the arc traced by the stylus across the record surface. Because records are cut with a linear path but pivoting arms swing in an arc, there is always some degree of tracking error - an angular difference between the cutter head that made the groove and the stylus that plays it back.


9 inch arm: A shorter arm must swing through a steeper arc, which means a higher average tracking error and greater angular deviation from the ideal.


12 inch arm:   With a longer effective length, the arc flattens, and the stylus approaches the cutter’s geometry more closely. The result? Reduced tracking error and lower distortion, particularly at the inner grooves where angular error is magnified.


Put simply: longer arms reduce the degree of error inherent in pivoted playback.



Reduced Tracking Distortion

Tracking distortion manifests as harshness, congestion, or a slight fuzziness in complex passages, especially toward the end of a record side.


A 12 inch tonearm reduces distortion in two critical ways:


  • Lower Angular Error: Less error means fewer harmonic artefacts added to the music.
  • Improved Groove Contact:   With reduced side-force angles, the stylus sits more stably in the groove, extracting information more accurately.


Listeners often describe the effect as greater ease, improved soundstage stability, and a more relaxed presentation, without losing detail.



Lower Effective Skating Force

Because the stylus is offset at an angle to follow the groove, pivoted arms generate a skating force pulling inward toward the spindle. This force is proportional to the tracking angle error. With a longer arm, that angle is smaller, which in turn reduces the magnitude of skating force.


Why does this matter? Lower skating means:


  • More even wear on both groove walls.
  • Less stress on the cantilever suspension.
  • More consistent channel balance.



Mass and Resonance Control

Tonearm length also influences resonance characteristics. A 12 inch arm typically has slightly higher effective mass, which can better suit low-compliance cartridges, standard among high-end moving-coil designs. When well-matched, the arm-cartridge resonance falls into the “sweet spot” (around 8–12 Hz), minimising the risk of audible rumble or mistracking.


A longer arm tube also tends to shift resonant modes downward, often out of the most audible band. This, combined with advanced materials and damping strategies, can give 12 inch arms a smoother tonal balance and greater microdynamic finesse.




Why Not Always Choose a 12 Inch Arm?


The caveats: a longer arm requires a larger turntable footprint, more precise bearing engineering, and can introduce slightly greater inertia. Poorly designed 12 inch arms may sound sluggish compared to a well-designed 9-inch counterpart. But when executed properly, both science and the listener favour the 12 inch option for extracting the finest detail from vinyl.




Pivoting Arms vs. Linear Trackers: Why Tradition Wins

If reducing tracking error is so important, why not eliminate it altogether with a linear-tracking tonearm? After all, a true linear tracker moves the cartridge in a straight line, perfectly mimicking the path of the cutter head. In theory, it’s the ultimate solution. In practice, however, things are very different.


The Faults of Linear Tracking Arms:


  • Complexity and Reliability: Linear arms require motors, servos, air pumps, or elaborate mechanisms to maintain perfectly straight motion. Each introduces noise, vibration, and potential failure points.


  • Friction and Stiction: Many linear systems suffer from friction at the guide rail or binding at the bearings. The result is that the arm doesn’t glide freely, causing audible mistracking, often worse than the tracking error of a pivoted arm.


  • Maintenance Burden:  Air-bearing systems demand pumps, hoses, and scrupulous cleanliness. Servo-driven systems require calibration. Fail to maintain them, and performance drops drastically.


  • Practical Footprint: Linear arms often occupy more space, complicate turntable design, and limit cartridge choices.



Why Pivoted Arms Still Reign

By contrast, a well-engineered pivoted arm, especially a 12 inch design, offers simplicity, reliability, and sonics that consistently outpace most linear competitors. The slight residual tracking error of a pivoted arm is predictable, easy to correct with careful alignment, and negligible when compared to the mechanical headaches linear systems bring.


In short, while linear tracking looks perfect on paper, in the real world, it often fails where it matters most: ease of use, reliability, and delivering consistent musical pleasure. That’s why, after decades of experimentation, the analogue community still regards the pivoting tonearm as the gold standard for vinyl playback.



THE BOTTOM LINE

A 12-inch pivoting tonearm isn’t just longer, it’s smarter engineering. By reducing tracking error, lowering skating force, and stabilising groove contact, it brings playback geometry closer to the ideal without mechanical complication. The result is smoother sound, less distortion, and a presentation that feels both more natural and more revealing. While shorter arms can still perform admirably, the longer pivot arm simply gives the cartridge a better platform to do its job.


For those seeking the most faithful, effortless translation of the groove into music, the science and the listening point clearly toward 12 inches.
